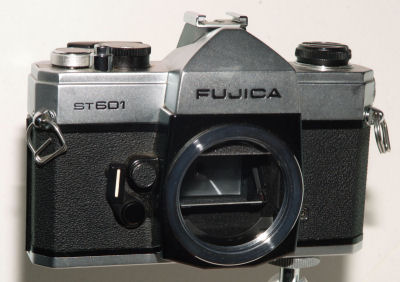

ST601 |
| General Description | |
| Stop-down
aperture TTL metering, mechanical shutter. This introduced as a cheaper
version of the later ST701. It is similar in most respects but has a top
shutter speed of 1/700 instead of 1/1000 and was sold with an F2.2 lens.
Unfortunately and unlike most of the Fujica SLRs, the 601 is designed to take mercury batteries which are no longer available. For a discussion on solutions to this problem, click here. |
|
| Specifications | |
| Type | 35mm focal-plane shutter single-lens reflex camera with TTL exposure meter coupled with the shutter and diaphragm |
| Film Used | 135 cartridge-packed film |
| Picture Size | 24 x 36mm |
| Normal Lens | FUJINON 55mm F2.2 (4 component, 4 element). Automatic diaphragm, multiple increment F-stop calibrations with click stops for intermediate values, screw mount. Rectilinear helicoidal focusing. 49mm Æ screw-in filter. |
| Shooting Distance | 0.6m - ¥ with F2.2 55mm lens. |
| Shutter | Focal-plane shutter, B-1/2-1/700 sec. Film speed indicator window built into Shutter Speed Selector Dial, built-in self-timer. X contact and hotshoe. |
| Viewfinder | Pentaprism eye-level finder (0,96 X magnification with F2.2 55mm lens), microprism focusing center, split-image and ground glass. |
| Mirror | Quick return type |
|
Exposure Meter |
Through-the-lens average light measurement with close-down-aperture. Silicon photo-cell receptors coupled to FET (Field Effect Transistor) circuit, zero in type indicator needle visible in viewfinder. |
| Coupled Range | ASA 25-1600 (1/3rd step), EV2-EV17-2/3 (f/1.4 1/2 sec. - f/1 6 1/700 sec with ASA 100 film). |
| Power Source | Two 1.35V mercury batteries (Mallory RM-400R, Ever Ready E400) or 2 SR44 |
|
Film Advance |
One-stroke film advance lever, stand off on lever tip, returnable from any angle, easy loading. |
| Frame Counter | Automatic resetting additive type. |
| Film Rewind | Hand crank |
| Flash Synchronization | X. Hot Shoe |
| Lens Mount | Praktica screw mount, 42 Æ, 1 P mm |
| Dimensions | 5.24 x 3.39 X 3.47mch (133 X 86 X 88mm) with F2.2 lens. |
| Weight | 770g. with F2.2 lens mounted (including batteries and lens cap). 610g body alone. |
| Optional Accessories | Hard Case, Eye Cup, Eyesight Adjustment Attachment Lens, Rightangle Finder, Close-up Lens, Extension Tube (auto), Microscope Adapter, Leica mount Adapter, Reverse Adapter, Extension Bellows, Macrocmecopy, Lens Hood. |
| Manual | You can download a copy of the manual Here The password is Fujica |
| SPT Journal Repair Notes | You can download a copy of the manual Here The password is Fujica |
