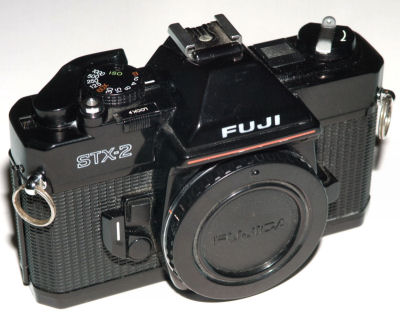

STX2 |
| General Description | |
| Open-aperture manual. Now called "Fuji", not "Fujica". | |
| Specifications | |
| Type | 35mm focal-plane shutter single-lens reflex camera with TTL exposure meter coupled with the shutter and diaphragm. |
| Film Used | 135 cartridge-packed film. |
| Picture Size | 24 x 36mm |
| Normal Lens |
X-Fujinon F1.9, 50mm FM, 5 components, 5 elements. 49mm Æ screw-in filter, fully automatic aperture setting, geometrical progression apertures with click stops. |
| Shooting Distance |
0.6m - ¥ With F1.9 50mm lens. |
| Shutter | Focal-plane shutter, B-1/2-1/700 sec. Film speed indicator window built into Shutter Speed Selector Dial, built-in self-timer, X-contact hotshoe. |
| Viewfinder | Pentaprism eye-level viewfinder: 0.86 X magnification, 90% vertical 92% horizontal field of view (with F1.9 50mm lens), shutter speed scale and indicator needle; microprism focusing center, split image and ground glass. |
| Mirror | Quick return type. |
|
Exposure Meter |
TTL center weighted averaging type. Silicon photocell receptor coupled to FET (Field Effect Transistor) circuit; 3-LED exposure indicator in viewfinder. |
| Coupled Range | ISO 25-3200 (1/3rd step), EV2-EV18 (f/1.4 1/2 sec. ~f/16 1/1000 sec. with ISO 100 film). |
| Power Source | Two 1.5V alkaline-manganese batteries (LR44), 1.35V mercury batteries (HR44) or 1.5V silver-oxide batteries (SR44). |
|
Film Advance |
Single-stroke lever, 140o winding angle, self-cocking shutter, easy loading |
| Frame Counter | Automatic resetting additive type. |
| Film Rewind | Hand crank. |
| Flash Synchronization | X-contact hotshoe. |
| Lens Mount | Fujica X mount. |
| Dimensions | 133x87x87mm(5.24x3.43X3.43inch) with F1.9 lens. |
| Weight | 625g. with F1.9 lens mounted (including batteries). 480g. body alone (including body cap). |
| Optional Accessories | Eyecup, Eyesight Adjustment Lens, Automatic Extension Tubes, Microscope Adapter, Reverse Adapter, Automatic Extension Bellows, Lens Hood, Mount Adapter-X-S, Teleconverter 2X, Gadget Bags L, S, Fujica Filters, Auto Strobo AZ, Auto Strobo 300X, Auto Strobo 200X, Slide Copier. Focussing Rail, Macrooinecopy. |
| Manual | You can download a copy of the manual Here The password is Fujica |
