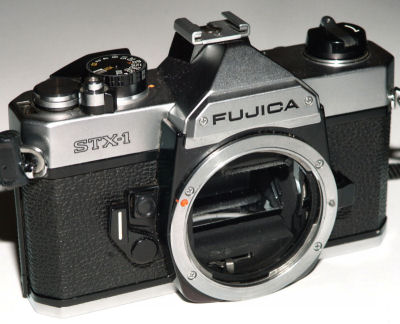

STX1 |
| General Description | |
| Open-aperture manual, no facility for replacement back, auto winder or dedicated flash. Hot-shoe flash contact only. Mechanical shutter. | |
| Specifications | |
| Type | 35mm focal-plane shutter single-lens reflex camera with TTL exposure meter coupled with the shutter and diaphragm. |
| Film Used | 135 cartridge-packed film. |
| Picture Size | 24 x 36mm |
| Normal Lens | X-Fujinon F1 6, 50mm DM 6 components,6 elements, or X-Fu]inon F2.2, 55mm 4 components, 4 elements. 49mm Æ screw-in filter, fully automatic aperture setting, geometrical progression apertures with click stops. |
| Shooting Distance |
0.6m - ¥ With F1.6 50mm lens, 0 6m - ¥ with F2.2 55mm lens. |
| Shutter | Focal-plane shutter, B-1/2-1/700 sec. Film speed indicator window built into Shutter Speed Selector Dial, built-in self-timer, X-contact hotshoe. |
| Viewfinder | Pentaprism eye-level viewfinder 0 96 X magnification, 90% vertical 92% horizontal field of view (with F2.2 55mm lens), shutter speed scale and indicator needle; microprism focusing center, split image and ground glass quick return type. |
| Mirror | Quick return type. |
|
Exposure Meter |
TTL center weighted averaging type Silicon photo-cell receptors coupled to FET (Field Effect Transistor)circuit, zero in type indicator needle visible in viewfinder. |
| Coupled Range | ASA 25-3200 (1/3rd step), EV2-EV17-2/3 (f/1.4 1/2 sec - f/1.6 1/700 sec. with ASA 100 film) |
| Power Source | Two 1.5V alkaline-manganese batteries (LR44), 1.35V mercury batteries (HR44) or 1.5V silver-oxide batteries (SR44). |
|
Film Advance |
Single-stroke lever, 140o winding angle, self-cocking shutter, easy loading |
| Frame Counter | Automatic resetting additive type. |
| Film Rewind | Hand crank. |
| Flash Synchronization | X-contact hotshoe. |
| Lens Mount | Fujica X mount. |
| Dimensions | 133 x 86 x 88mm ( 5.24 x 3.39 X 3 47inch) with F2.2 lens. |
| Weight | 690g. with F2.2 lens mounted (including batteries and lens cap) 540g. body alone (including body cap). |
| Optional Accessories | Eyecup, Eyesight Adjustment Lens, Right-angle Finder. Automatic Extension Tubes. Microscope Adapter, Reverse Adapter, Automatic Extension Bellows, Lens Hood, Mount Adapter-X-S, Teleconverter 2X, Gadget Bags L, S, Fujica Filters, Auto Strobo AZ, Auto Strobo 300X. Slide Copier, Focussing Rail, Macrocinecopy. |
| Manual | You can download a copy of the manual Here The password is Fujica |
