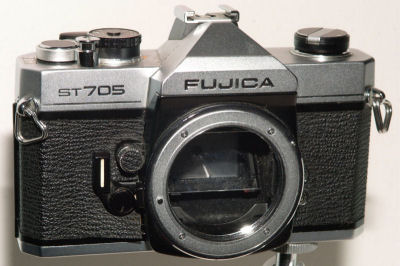

ST705 |
| General Description | |
| Stop-down aperture TTL metering, mechanical shutter. Hot-shoe and pc socket for flash. This is an updated version of the ST701. The major difference are the batteries (silver oxide). Available in Black or Chrome | |
| Specifications | |
| Type | 35mm focal-plane shutter single-lens reflex camera with TTL exposure meter coupled with the shutter and diaphragm |
| Film Used | 135 cartridge-packed film |
| Picture Size | 24 x 36mm |
| Normal Lens |
FUJINON 50mm F1.4 (6 components, 7 element), or FUJINON 55mm F1.8 (4 components, 6 elements). Automatic diaphragm, multiple increment F-stop, calibrations with click stops for intermediate values, screw mount. Rectilinear helicoidal focusing. 49mm Æ screw-in filter. |
| Shooting Distance |
0.45m - ¥ with F1.4 50mm and F1.8 55mm lenses |
| Shutter | Focal-plane shutter, B-1-1/1500 sec. Film speed indicator window built into Shutter Speed Selector Dial, built-in self-timer, FP and X contact. Hotshoe |
| Viewfinder | Pentaprism eye-level viewfinder 0 96 X magnification with F1.8 55mm lens), microprism focusing center, split image and ground glass. |
| Mirror | Quick return type |
|
Exposure Meter |
TTL average light measurement with close-down aperture. Silicon photo-cell receptors coupled to FET (Field Effect Transistor) circuit, zero in type indicator needle visible in viewfinder |
| Coupled Range | ASA 25-3200 (1/3rd step), EV1-EV18 (f/1.4 1sec - f/16 1/1000 sec. with ASA 100 film) |
| Power Source | Two 1.6V nickel-zinc batteries (Toshiba NZ-13) or 1.5V silver oxide batteries (Eveready S-76E, Mallory MS-76H or UCAR S-76E) |
|
Film Advance |
Single-stroke lever , 193o winding angle, winding latitude provided by lever tip, returnable lever (from winding angle), self cocking shutter, easy loading, provision for double-exposure prevention. |
| Frame Counter | Automatic resetting additive type. |
| Film Rewind | Hand crank |
| Flash Synchronization | FP, X, Hotshoe (on later models only) |
| Lens Mount | Praktica screw mount, 42 Æ, 1 P mm |
| Dimensions | 133 x 91 x 88mm ( 5.24 x 3.59 X 3. 47inch) with F1.8 lens |
| Weight | 780g. with F1.8 lens mounted (including batteries and lens cap). 585g. body alone (including body cap) |
| Optional Accessories | Leather Case, Eyecup, Eyesight Adjustment Lens, Right-angle Finder, Accessory shoe, Close-up lens, Extension Tubes, Microscope Adapter, Leica Mount Adapter, Reverse Adapter, Extension Bellows, Lens Hood, Body Mount Cap, Macrocinecopy. |
| Manual |
Available Soon. The password is Fujica You can download a copy of the repair manual Here |
