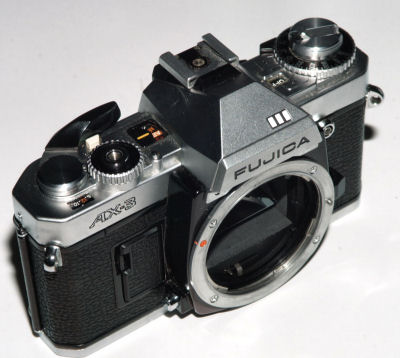

AX3 |
| General Description | |
| Aperture Priority + Manual, electronic shutter. Early cameras have chrome top plates, later cameras are all black. Facility for replacement back, auto winder and dedicated flash. Hot-shoe flash contact and pc socket. Also available in Black | |
| Specifications | |
| Type | 35mm focal-plane shutter single-lens reflex camera with TTL exposure meter coupled with the shutter and diaphragm. |
| Film Used | 135 cartridge-packed film. |
| Picture Size | 24 x 36mm |
| Standard Lens | X-Fujinon F1.6 50 mm DM, 6-component, 6-element; EBC X-Fujinon F1.6 f=50 mm DM, 6-component, 6-element; EBC X-Fujinon F1.2 50 mm DM, 7-component, 7-element; X-Fujinon Z F3.5 - 4.5 43 - 75 mm DM, 7-component, 7 element. |
| Shooting Distance |
0.6m - ¥ With F1.6 50mm lens. |
| Shutter | Cloth focal plane, electronically controlled from 2 seconds to 1/1000 second in 1/4 steps (digital control; oil less metal. |
| Shutter Speed Selector Settings: | B. AEL. AE, 2S, 1, 1/2, 1/4, 1/8, 1/15, 1/30,1/60,1/125, 1/250,1/500, 1/1000. |
| Viewfinder | Silvered pentaprism eye level type. 0.86 X magnification, 92% vertical and horizontal field of view. Reading by turning on the power switch and pressing the shutter release halfway down. |
| Viewfinder Information: | Shutter speed indication,
aperture number, over and underexposure warning, battery check signal. |
| Mirror | Coated, quick return type. |
|
Exposure Meter |
Silicon photocells. center-weighted averaging system. |
| Exposure Compensation: | 1 stop by means of the
camera s fractional exposure control. |
| Coupled Range | ASA 12-3200 (1/3rd step), EV0-EV19 (f/1.4 2 secs - f/22 1/1000 sec. with ASA 100 film) |
| Power Source | 6V silver-oxide battery (4SR44}, alkaline-manganese battery (4LR44) or lithium battery. |
|
Film Advance |
Single-stroke lever on
camera top: provision for advancing film in small increments 144 degree
winding angle, 25 degree stand off. |
| Frame Counter | Automatic reset, additive; counts backward during film rewind, remains still during multiple exposure. |
| Film Rewind | Rewind button and crank button automatically returns to normal position when crank is wound. |
| Flash Synchronization | X contact. 1/60-sec. hot
shoe; special contacts for exclusive flashes; provided with sync
terminal. Automatic shutter speed setting with exclusive flashes
automatic flash exposure. |
| Lens Mount | Fujica X Mount (bayonet mount): 65o turn: 43.5 mm flange back |
| Dimensions | Body: 135x86x54 mm. With 1.6/50 mm lens: 135x86x87 mm. |
| Weight | 690g. with F1.6 lens mounted (including batteries and lens cap). 520g. body alone (including body cap). |
| Included Accessories | Hard case, carrying strap,
lens front cap, viewfinder eyepiece cap, rubber lens hood. |
| Optional Accessories | Fujica Auto Winder X. Fujica Auto Strobe AZ, Fujica Auto Strobe 300X, Fujica Photo Recorder, Fujica Mount Adapter X S. Fujica Auto Extension Tube X25, Fujica Auto Extension Tube X50, Fujica Auto Bellows X, Fujica Slide Copier X. Fujica Microscope Adapter X, Fujica Macro Cine Copy X, Fujica Reverse Adapter X, Fujica Focusing Rail X, Fujica Right angle Finder, Fujica Eyesight Correction Lenses, Fujica Eyecup, Fujica Teleconverter 2X. |
| Manual | You can download a copy of the manual Here The password is Fujica |
